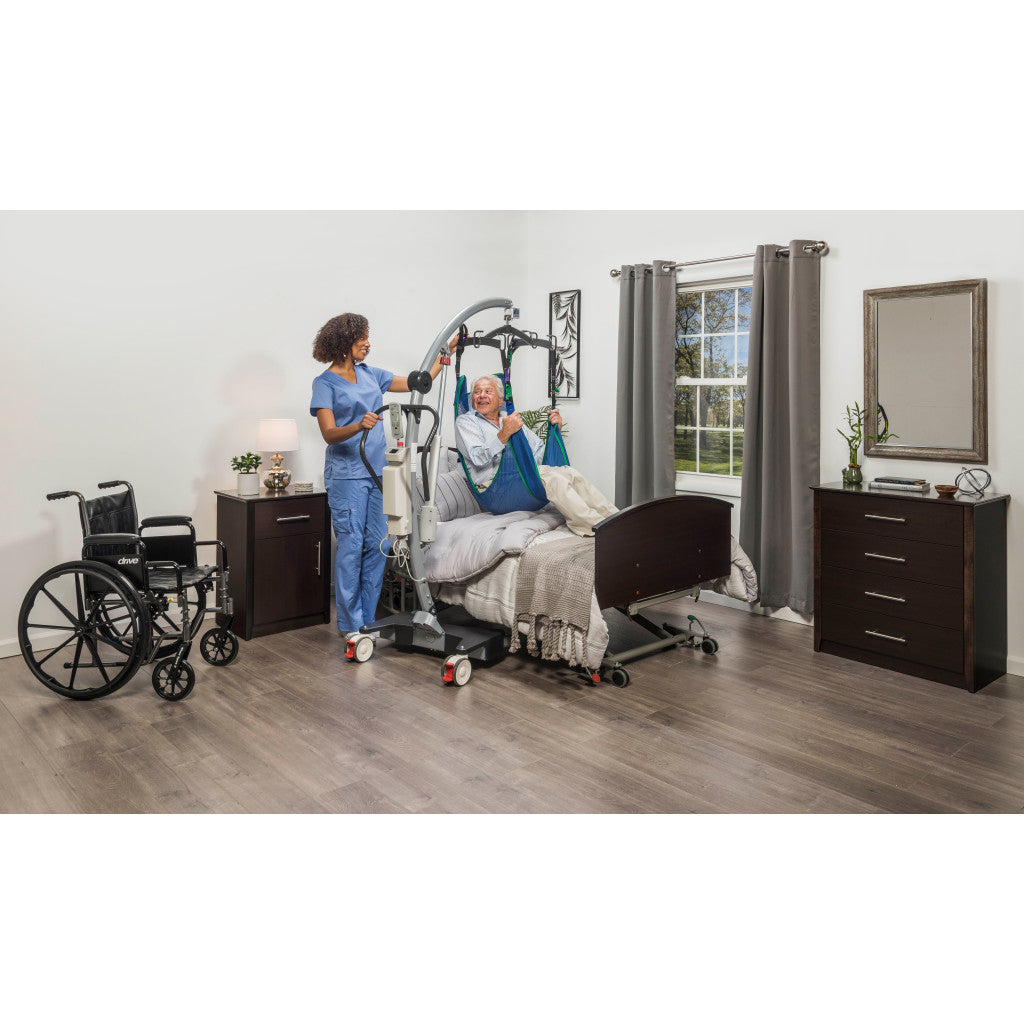

LEVANTAR Floor Lift, Manual Base 500 lbs

LEVANTAR Floor Lift, Manual Base 500 lbs

FLNP500

$2,899.99 CAD
$2,899.99 CAD $2,899.99 CAD
Sale Sold out
Shipping calculated at checkout.

Need Help ? Call Us | Tel: 416 746 6789 Store Hours Mon- Sat 10:30am -6:30pm
  • Weight capacity of 500 lbs
  • Base option: Manual
  • Elegant, contemporary design with soft lines but still heavy duty
  • Oversized sealed rear casters roll easily and lock securely
  • Easily lifts resident from floor
  • Redundant controls allow for use even if hand control is inoperable
  • Smart & Safety Technology – LCD display
  • Visual battery fuel indicator on Hand Pendant and Lift Control Module
  • Auditable low battery alert fuel indicator
  • Lift safety stop if resident or caregiver accidentally gets in the way of the boom arm
  • Audible Alert if the lift detects weight overload
  • Maintenance monitoring: by months or lift cycles
  • Audible Alert that maintenance is due
  • NEW Six-point cradle with spring clips offer a more secure and wider foot print reducing sling squeeze, shallow height offers greater height range
  • Can be charged on, or off the lift
  • Includes 1 battery and external charger stand

Specs

Safety Working Load Levantar 500 lbs, 227 kgs
Maximum Overall Length 52”
Maximum Overall Height 76.3”
Minimum Overall Height 27.7”
Maximum height at hook 6.9”
Minimum height at hook 2.1”
Height at maximum reach 37.8” from mast axis, 38.8” from deepest mast arc
Reach at maximum height 32.4” from mast axis, 33.4” from deepest mast arc
Turn diameter 55.9”
External width when open 45.8”
Internal width when open 40.3”
External width when closed 31.6”
Internal width when closed 26.1”
Height of legs 5.3”
Ground clearance 2.9”
Front caster 3”
Rear brake caster 5”
Net weight 132.2 lbs
Gross weight 156.5 lbs
Battery Pack weight 7.9 lbs (5.0A), 4.9 lbs (2.9A)
Lift Frame Lifetime Limited
Electronics 5 yr
Battery/Hand Control 1 yr
